SAMPSON

Architectural Swing Gates

– PREMIUM COMMERCIAL & INDUSTRIAL SWING GATE SYSTEMS

The PalmSHIELD Sampson™ Architectural Swing Gate Series delivers a permanent, design-forward gate solution engineered for commercial and industrial environments where appearance, durability, and performance matter. Built with structural aluminum framing and compatible with all PalmSHIELD Elite™ infills and colors, Sampson swing gates provide unmatched flexibility for architects, designers, and facility managers.

  • Single & Double Swing Gate Configurations
  • Structural Extruded Aluminum Framework
  • Reinforced for Long-Term Performance
  • Compatible with All PalmSHIELD Elite™ Infills
  • Hardware, Locking & Safety Features
  • Code Compliance & Industry Standards
  • Architectural Finishes & Endless Color Options
Gate Hardware
Architect Resources (BIM/CAD, Specs)

Swing Gate Panel Styles

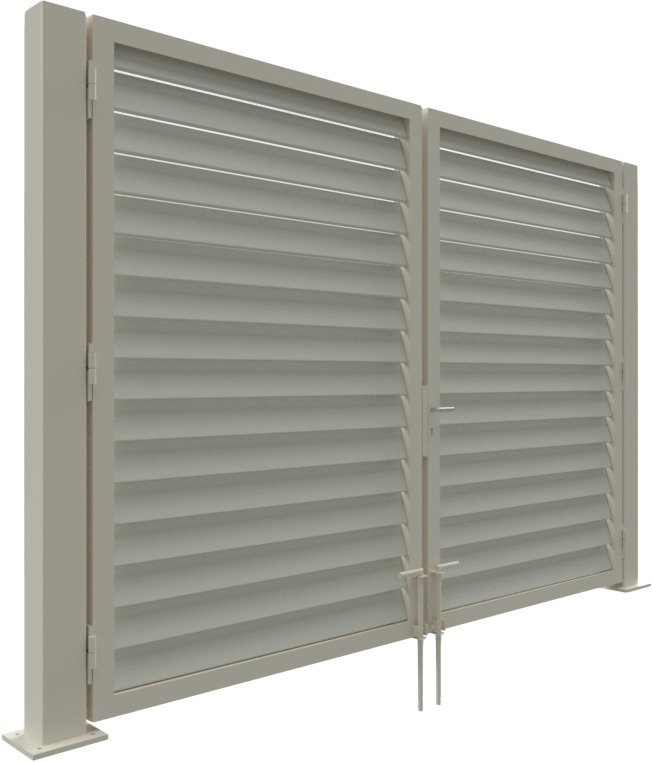

Louvered style options

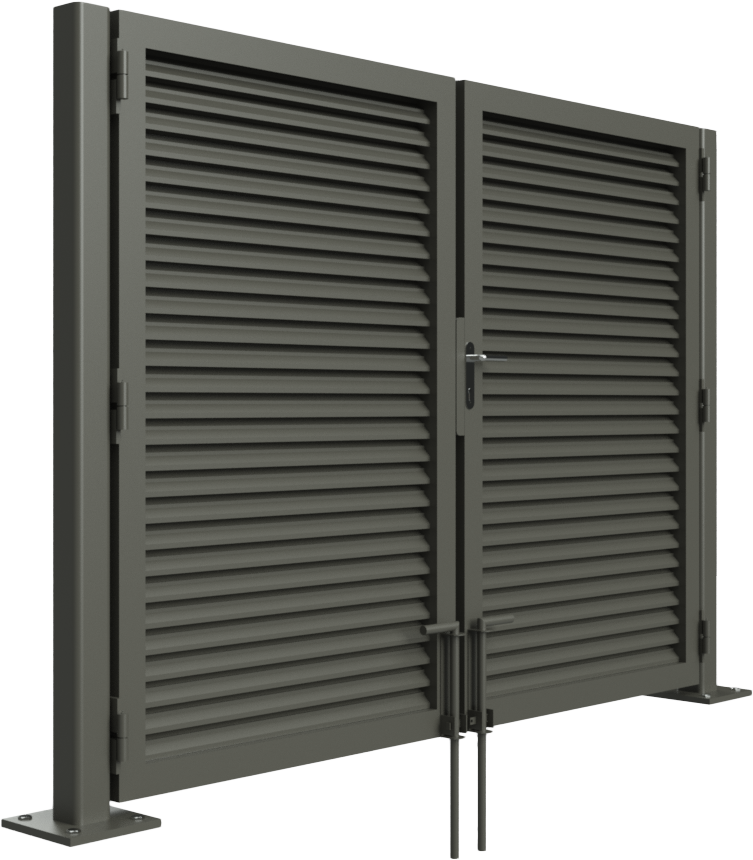

Aluminum Blade

Aluminum Plank

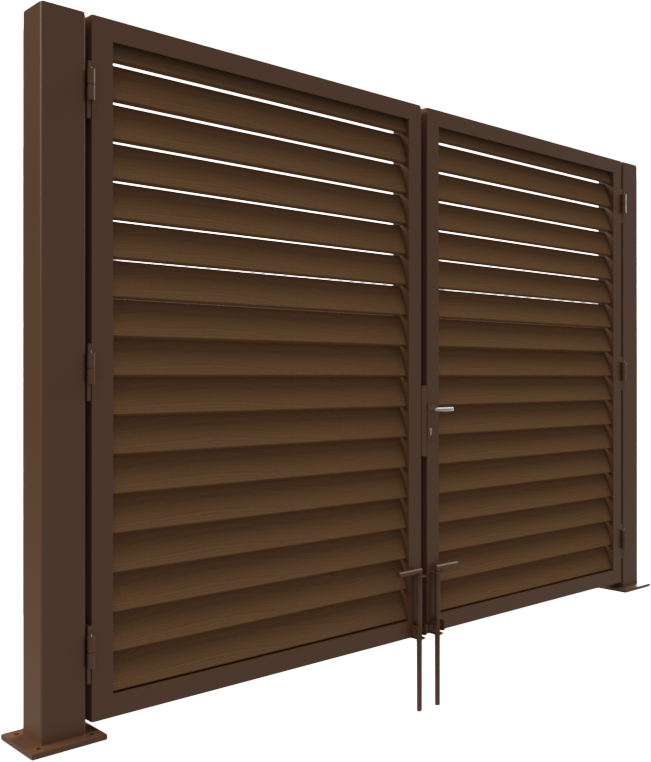

Composite Plank

Vinyl Plank

Premium Architectural Swing Gates for Commercial & Industrial Applications

Unlike standard industrial gates, the Sampson™ series is designed to integrate seamlessly into architectural environments. Each gate is fabricated with a fully finished aluminum framework, ensuring clean lines and a refined appearance from every angle.

Aluminum Gate Construction

Fabricated from 6063-T6 aluminum alloy extrusions, selected for strength, corrosion resistance, and long-term performance in outdoor environments. The gate frame incorporates a U-shaped aluminum design that encapsulates the infill and provides a finished architectural edge on all four sides.

Gate Configurations

– Single swing gates for controlled pedestrian or equipment access
– Double swing gates for wider openings and vehicle access
– Heavy-duty pivoting hinges for smooth, reliable operation

Gate Stability

Each Sampson™ gate leaf includes diagonal “X” bracing using stainless or galvanized steel cable. This reinforcement allows for vertical adjustment and helps prevent sagging over time—critical for high-use commercial and industrial applications.

Architectural Swing Gates for Commercial and Industrial Sites

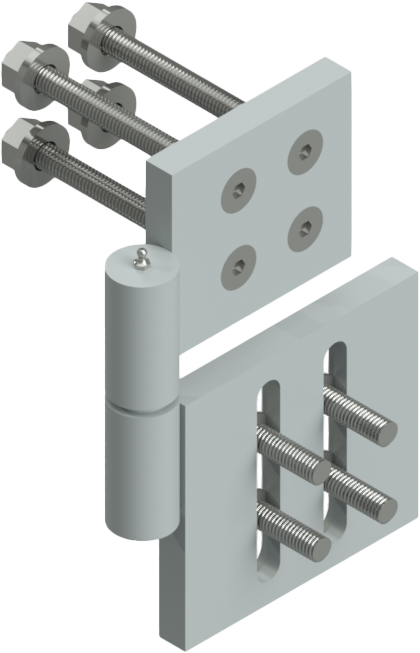

Gorilla Hinge 3000

Key Features

  • Weldable.  If you must weld, with two 4” x 4” plus hinge leafs, there is plenty of area to weld.
  • 5,000 lb Load Capacity.  With two 4 3/8” x 4” x ½” hinge leafs and a ¾” hinge pin, this hinge bears a massive amount of weight providing consistent reliable performance over time.
  • Sleek Design.  When closed, there is only a one inch gap between the gate and gate post providing limited access and eliminating unsightly gaps.
  • Bolt-On Install.  Bolt through the gate frame or use our backing plate to capture the gate frame.
  • Field Adjustable.  Gates are constantly moving in and out with 1000s of pounds of cantilevered load.  Adjustments will need to be made in time.  Do so effortlessly.
  • Low Maintenance.  One easy grease fitting per hinge simplifies lubrication increasing the life of your hinge.
More Details

Download Technical Specs

Access detailed CAD and BIM drawings, material specs, and installation guides for the Tiger™ Cantilever Slide Gate Series. Everything you need for accurate planning and engineering.

Download Specs
View CAD Files

architectural resources

Gate Frame Construction

  • 6063-T6 Aluminum Alloy Extrusions
  • Extruded tubular aluminum with U-shaped architectural frame
  • Fully finished on all four sides of the infill
  • Top Frame Member:
  • 2″ x 2″ aluminum structural tube or
  • 2″ x 1″ aluminum structural channel
  • Bottom Frame Member:
  • 2″ x 2″ aluminum structural tube
  • Vertical Frame Members:
  • 2″ x 2″ aluminum extrusions at gate leaf edges

Welding & Structural Integrity

  • AWS D1.2 Structural Welding Code
  • Certified Welding Procedures: Yes
  • Certified Aluminum Welders: Yes
  • Adjustable field tensioning devices
  • Structural Reinforcement: Diagonal “X” cable bracing

Gate hardware

  • Minimum of two heavy-duty pivoting hinges per gate leaf
  • Hinge Attachment: Through-bolted to gate frame
  • Locking – Single Swing Gates:
  • Heavy-duty latch system (padlock compatible)
  • Locking – Double Swing Gates:
  • Latch system with lockable drop rod assemblies per leaf

finish

  • Finish Options:
  • Mill finish aluminum
  • Polyester powder-coated finish
  • Surface Preparation:
  • Sweep blasted or chemically pretreated for coating adhesion
  • Color Options:
  • Endless powder coat color selections
  • Performance:
  • Corrosion-resistant
  • Low-maintenance architectural finish

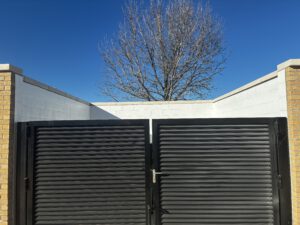

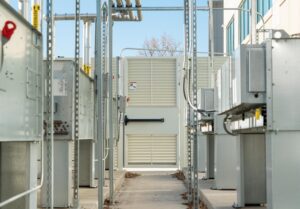

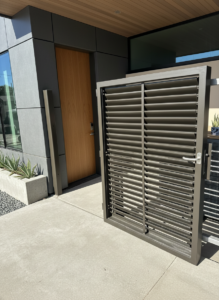

Swing Gate Project Photos

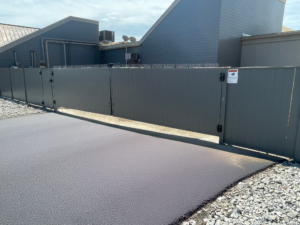

Gray private gates at a private entrance surrounded by stone walling and a greenhouse.

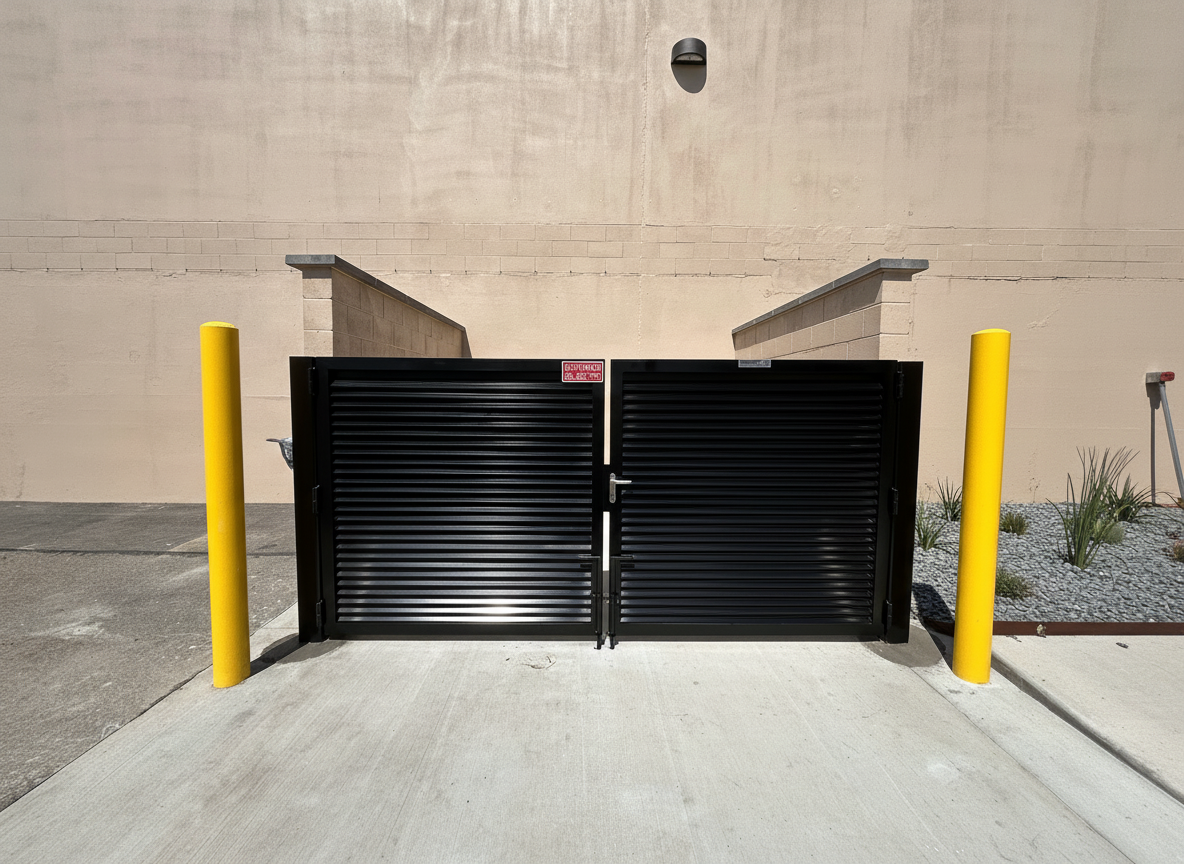

Black dumpster enclosure protected by there removable square bollards.

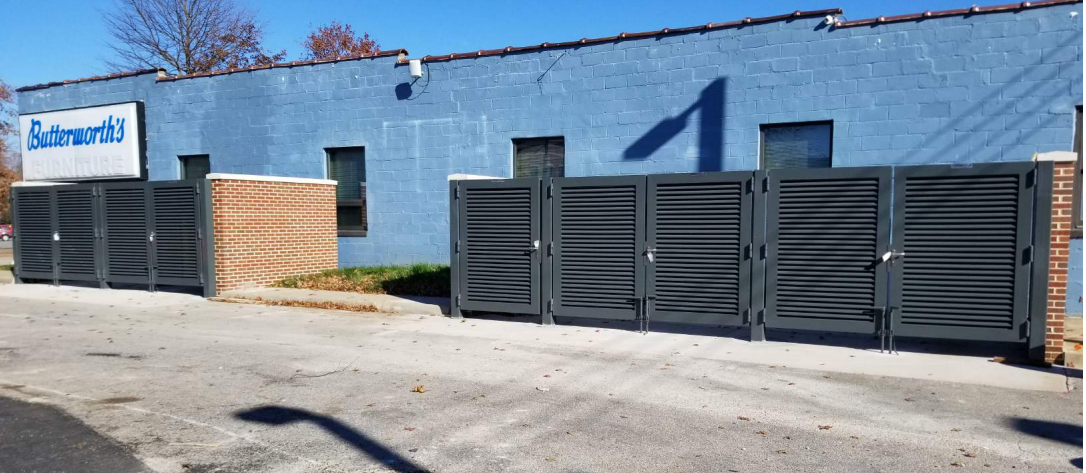

Commercial aluminum louver fence panels and gates installed along blue block building exterior with Butterworth's business signage. Industrial louvered privacy fencing system featuring horizontal slat design, multiple access gates, and professional installation on concrete pad. Modern commercial fence screening with aluminum louver construction, brick accent columns, and secure gate hardware for business property perimeter security and aesthetic enhancement.
Product #3

Request Pricing or Speak with a Gate Specialist

Ready to specify Sampson™ Architectural Swing Gates for your next project? Our team can help with design selection, infill options, finishes, and configurations tailored to your site.

Call PalmSHIELD to speak with a gate specialist
Request pricing or submit drawings using our contact form
