Tiger

Cantilever Slide Gate Series

– Cantilever gate design for architectural screening

The PalmSHIELD® Tiger™ Cantilever Gate Series is a heavy-duty, architecturally driven slide gate system engineered to integrate seamlessly with PalmSHIELD screen fencing and wall systems. Designed for projects where visual screening, airflow, and structural performance are equally critical, the Tiger Series delivers an unmatched balance of strength, aesthetics, and continuity.

  • Single, cohesive architectural slide gate system
  • Heavy-duty cantilever engineering for large spans
  • 100% direct visual screening options available
  • Fully welded aluminum construction
  • Factory finished with unlimited color options
  • A variety of designs to match your building’s exterior.
  • Tailored solutions to meet unique project requirements.
Explore Installed Projects
Architect Resources (BIM/CAD, Specs)

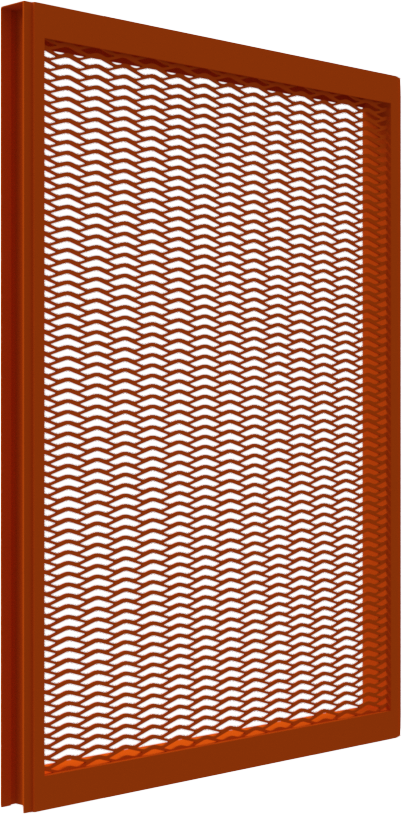

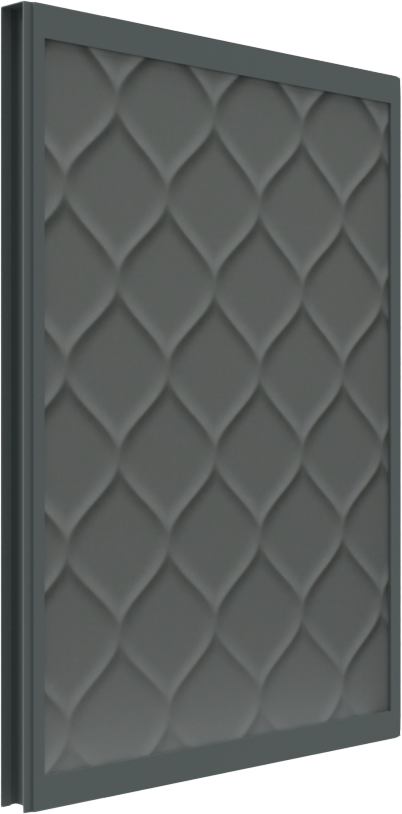

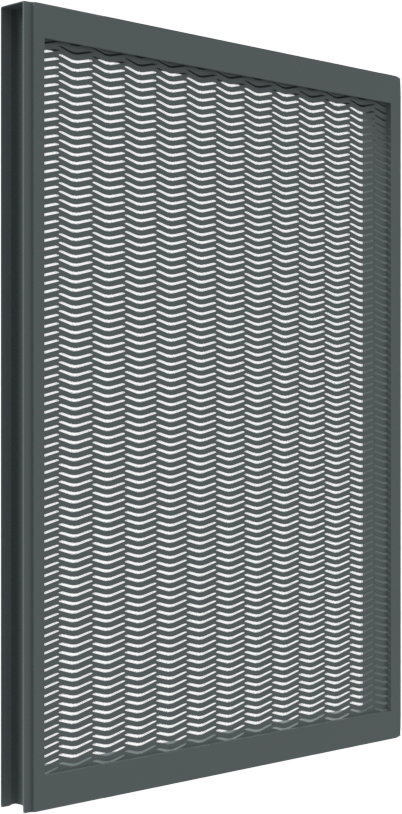

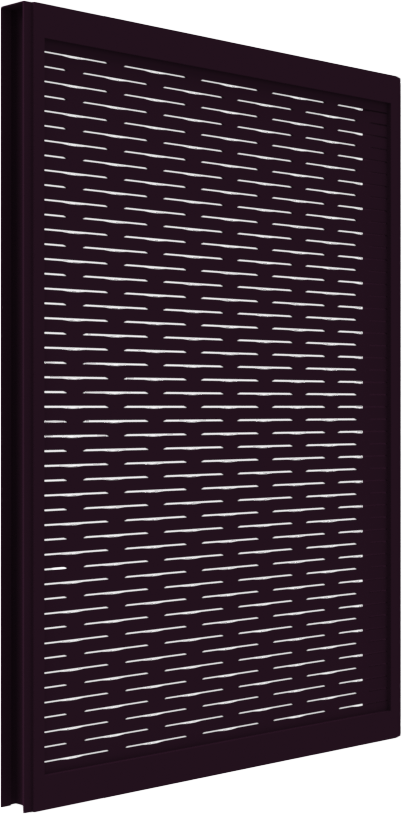

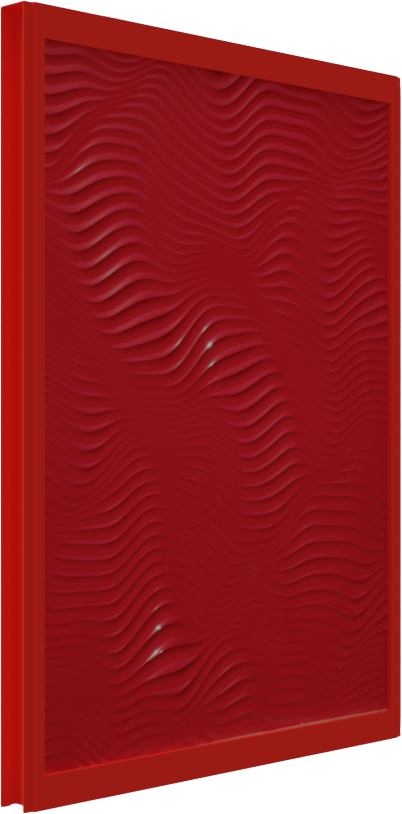

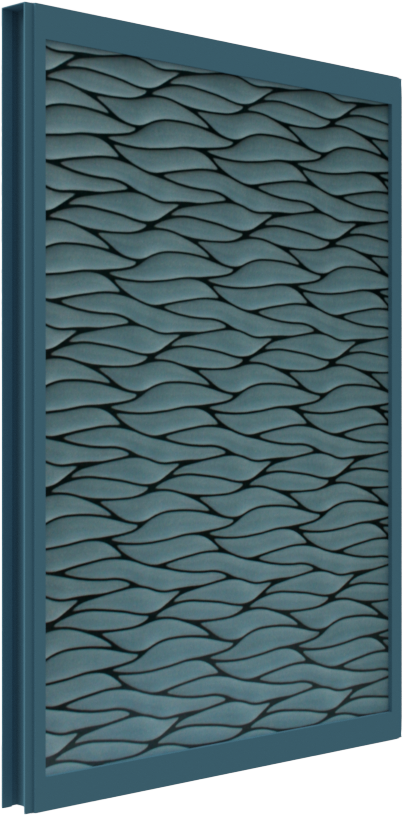

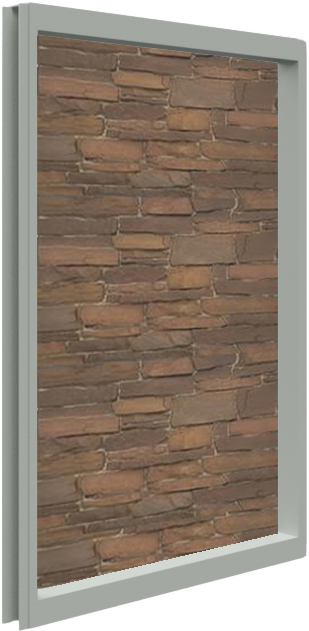

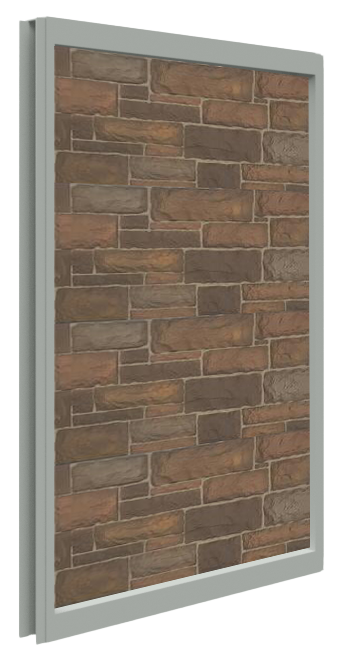

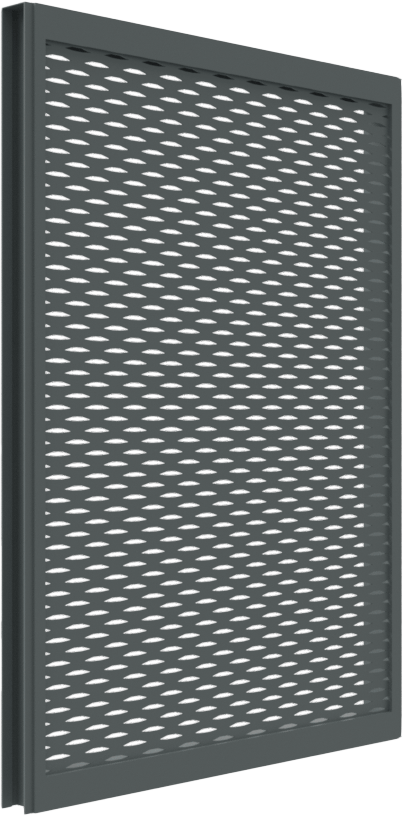

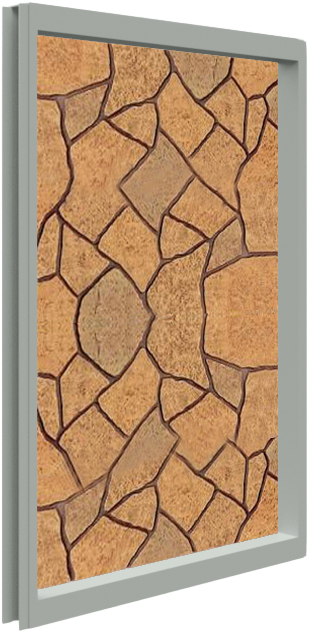

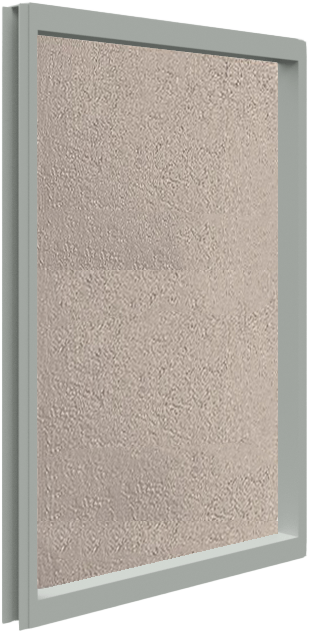

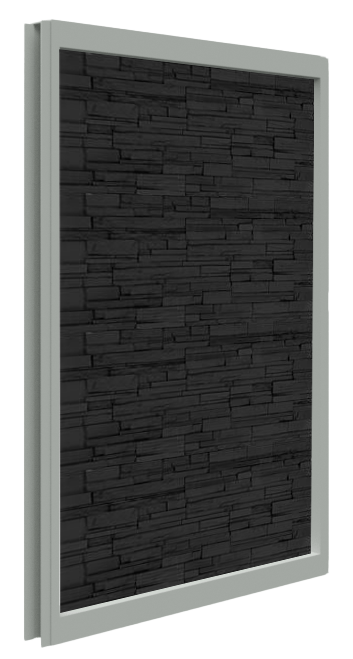

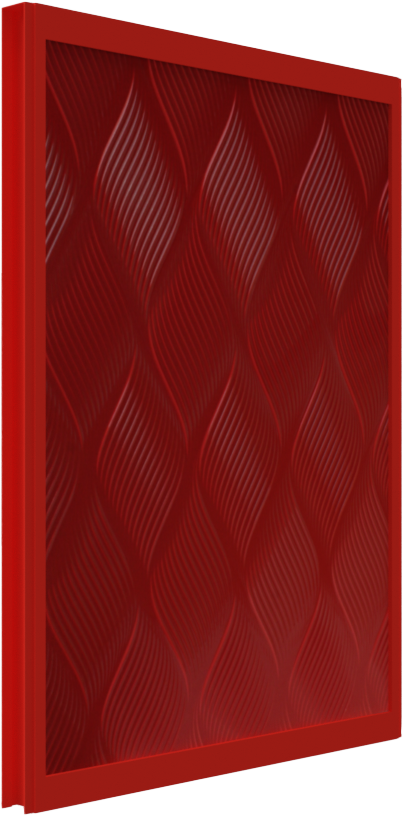

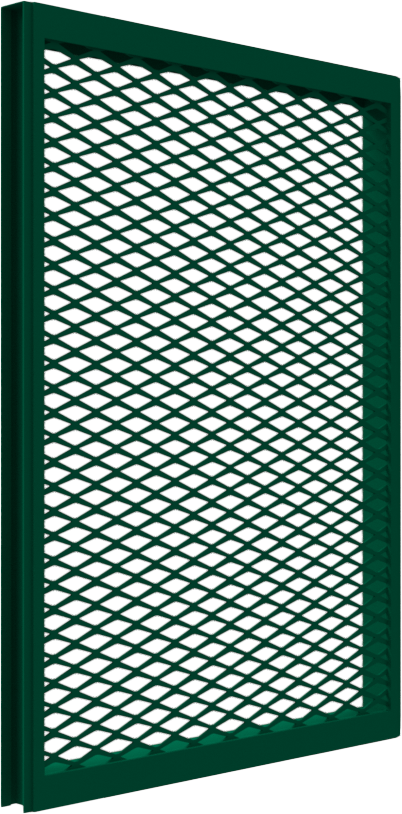

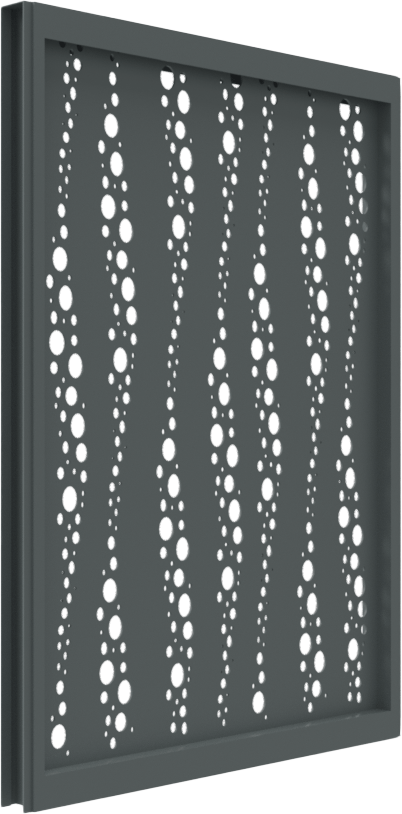

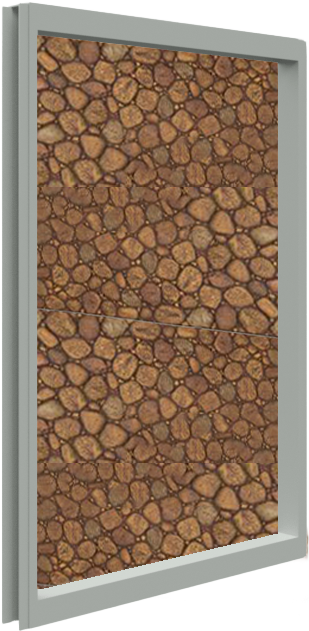

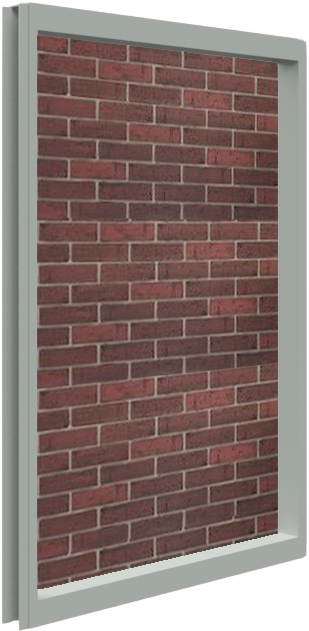

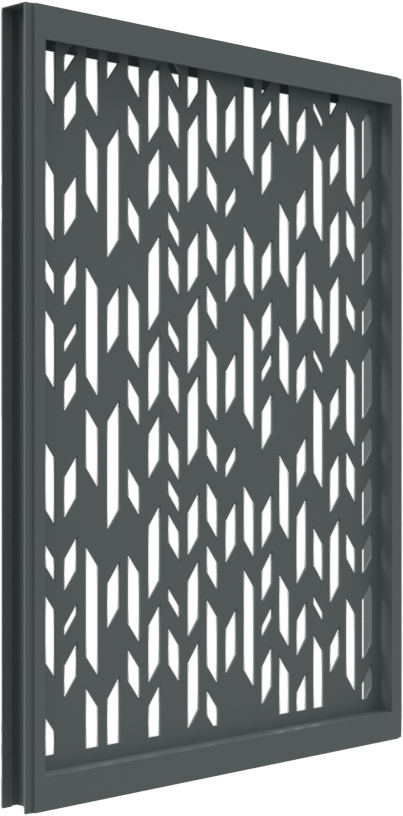

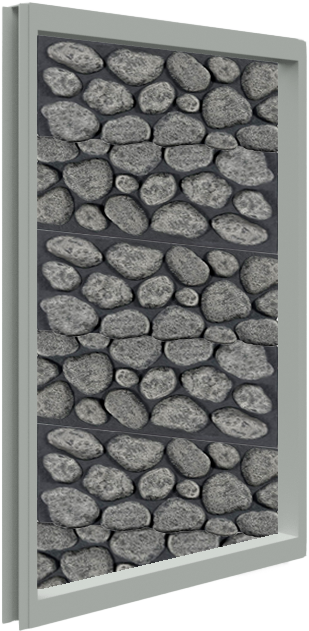

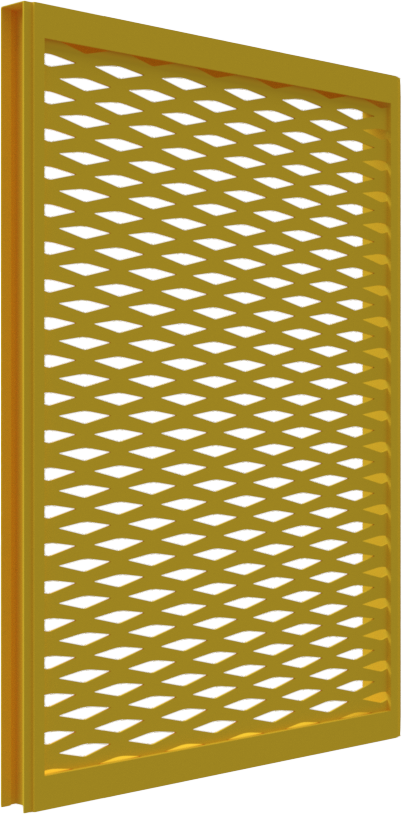

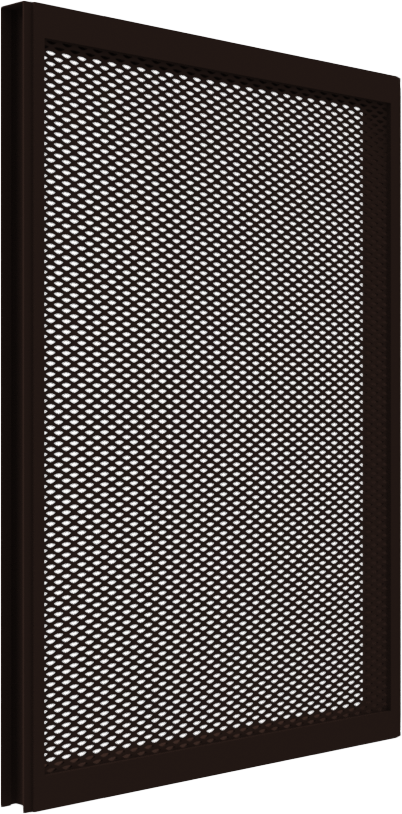

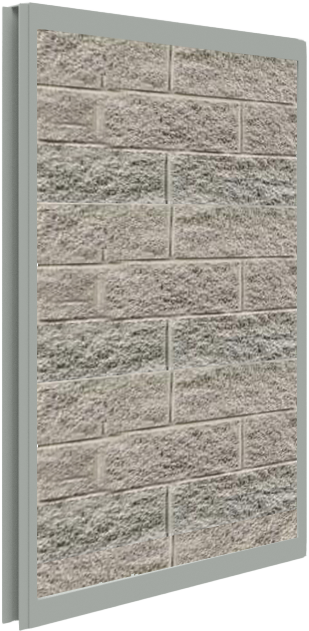

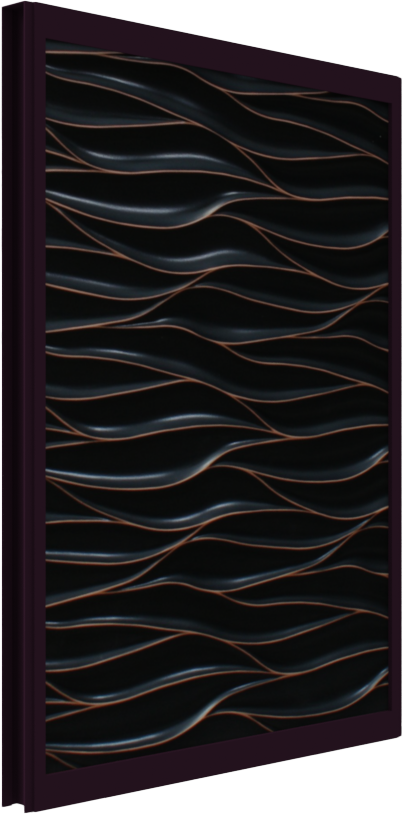

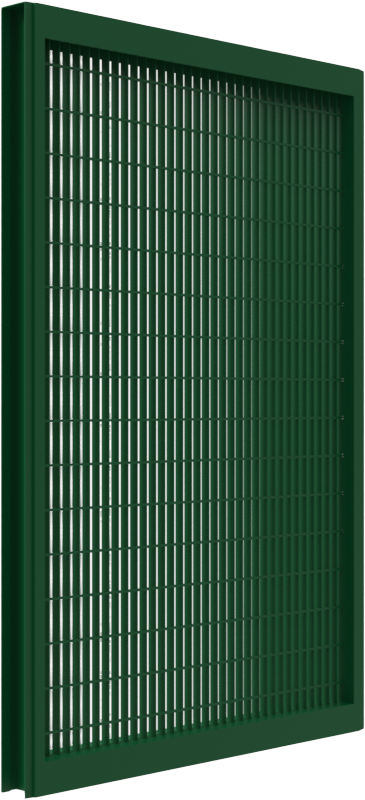

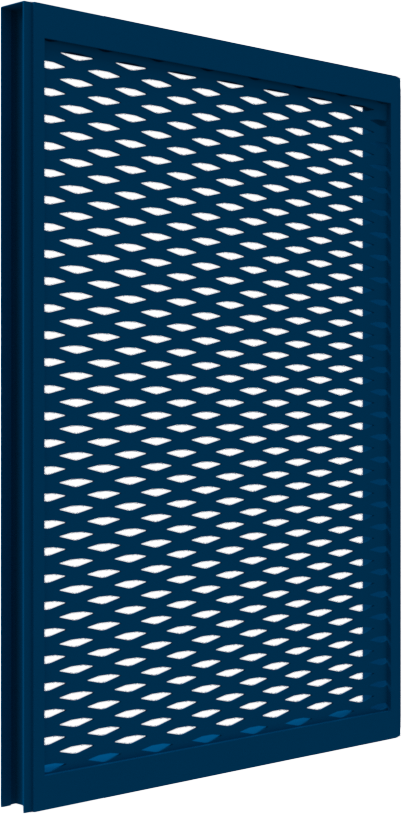

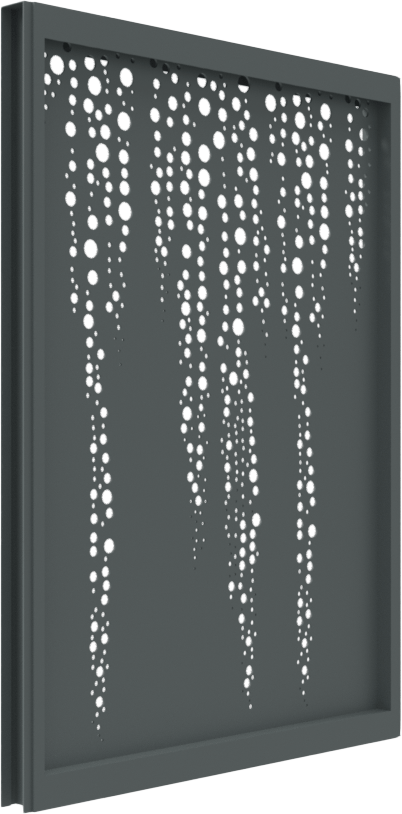

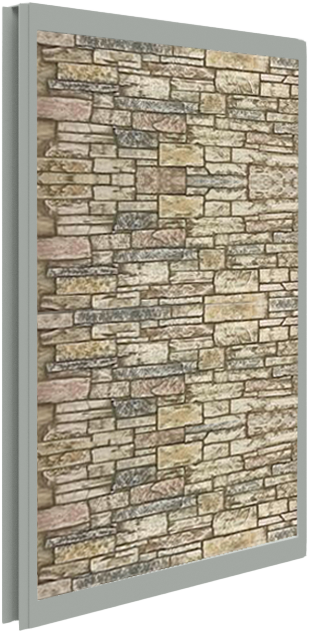

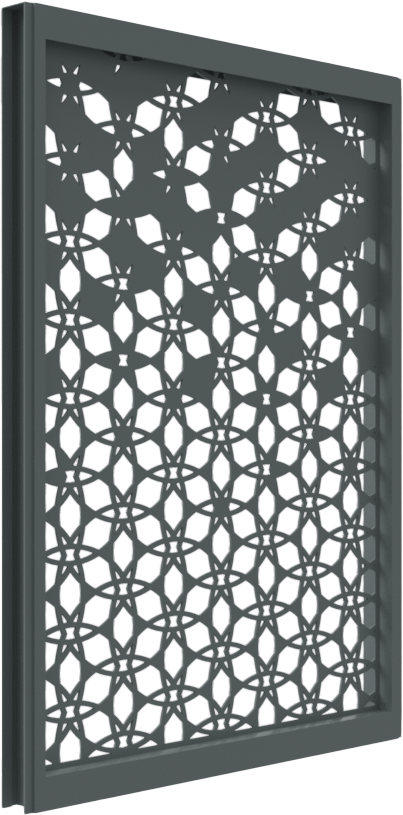

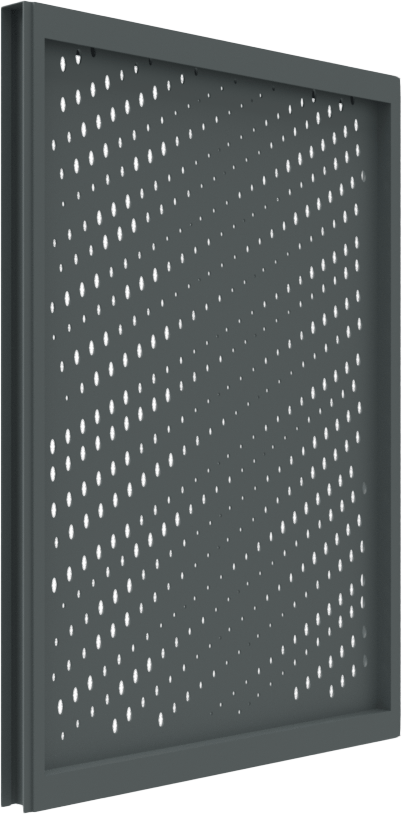

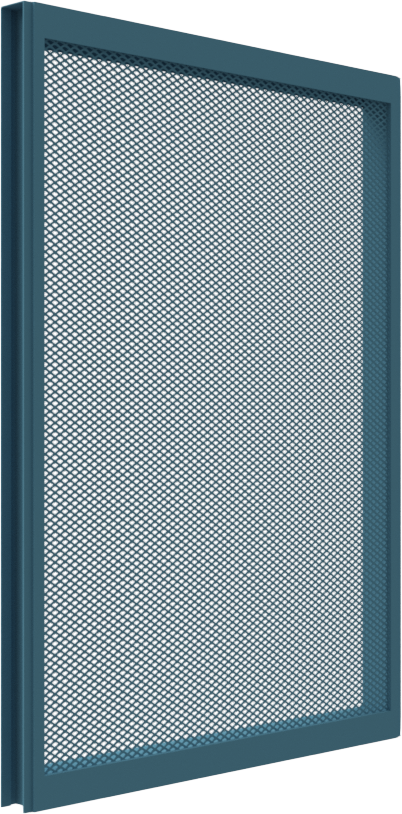

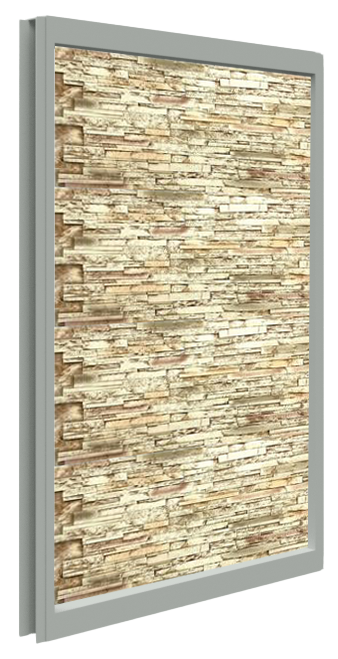

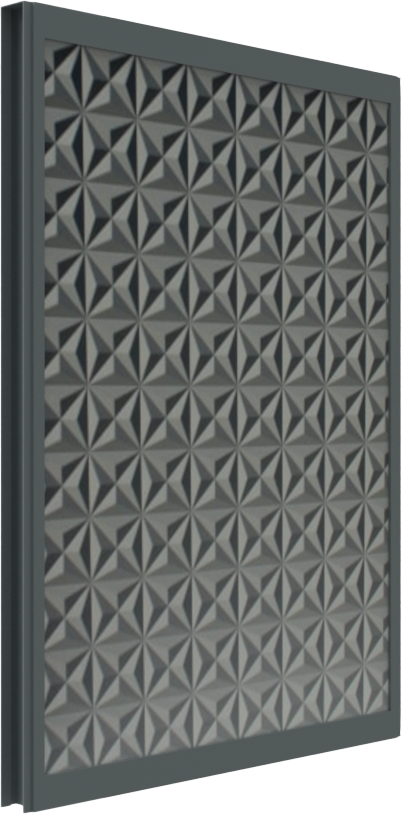

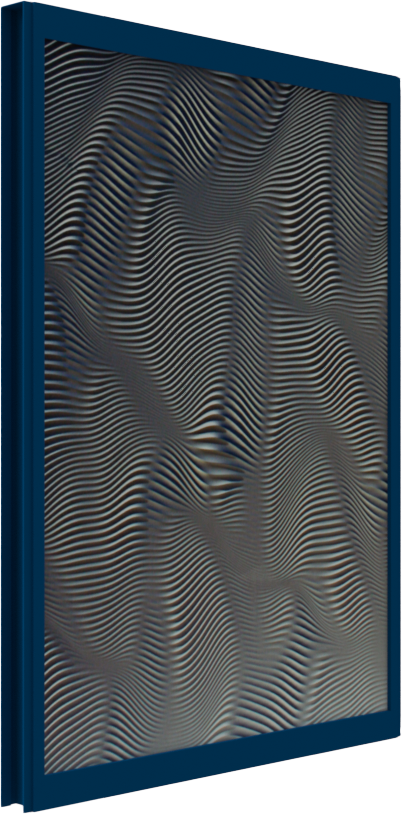

Slide Gate Screen Panel Styles

Louvered style options

Aluminum Blade

Aluminum Plank

Composite Plank

Vinyl Plank

Architectural Slide Gates for Commercial and Industrial Sites

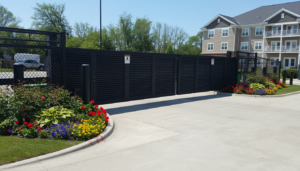

A black architectural cantilever gate in a cement driveway.

Download Technical Specs

Access detailed CAD and BIM drawings, material specs, and installation guides for the Tiger™ Cantilever Slide Gate Series. Everything you need for accurate planning and engineering.

Download Specs
View CAD Files

architectural resources

track system

  • Single track: 5.15 lbs per linear foot
  • Double track: 11.916 lbs per linear foot

Gate Frame & Structure

  • Fully shop-fabricated aluminum gate assemblies
  • Aluminum extrusions: 6063-T6
  • Fully trussed gate using 3/16″ galvanized cable in X-pattern
  • Adjustable field tensioning devices
  • Trussing concealed behind PalmSHIELD panels
  • Vertical supports: 2″ × 4″, max 6 ft on center
  • Bottom rail: 2″ × 4″ (upgraded to 5″ × 2″ for openings over 20′)

Gate hardware

  • Heavy-duty cantilever truck assemblies rated for continuous duty
  • Precision-ground, hardened components with sealed bearings
  • Minimum 5/8″ plated steel bolt, rated for 2,000 lb reaction load
  • Hot-dip galvanized hanger brackets, 3/8″ thick, gusseted
  • Track and hanger assemblies certified by a licensed professional engineer

finish

  • Factory-applied polyester powder coating
  • Electrostatic application with heat-cured bond
  • Color selected by owner
  • Minimum 2H pencil hardness
  • Impact resistance: 160 in-lbs
  • Salt spray resistance: 500–1,000 hours
  • Weathering performance: 88% gloss retention after 1 year (South Florida exposure)

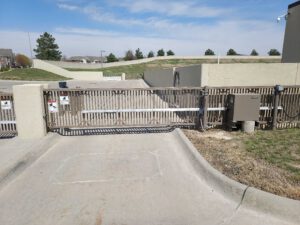

Cantilever slide Gate Project Photos

A cantilever gate with beige louvered infill in a historic downtown city district.
A black cantilevered gate in Omaha, NE, in front of a building brandishing artwork that reads "Midtown" in paint.
heavy duty black louvered cantilever gate with side solid swing gate for government private property
black louvered architectural cantilever gate securing commercial property with vibrant curb appeal

Premium Aluminum Cantilever Gate

Unlike conventional cantilever slide gates, the Tiger Series is purpose-built to support architectural infill panels, providing uninterrupted screening and a cohesive design language across the entire site.

Premium Materials

Tiger Series slide gates are fabricated from premium aluminum materials selected for strength, corrosion resistance, and long-term durability.

Engineered Performance

The Tiger Series is engineered to handle large spans, heavy architectural infill, and wind loads without compromising smooth operation or structural integrity.

robust framework

What sets the Tiger™ Cantilever Slide Gate Series apart is its oversized structural framework, designed specifically to support architectural screening systems—not adapted after fabrication.

Product #3

Request a Custom Quote

Tailor your Tiger™ Cantilever Slide Gate Series to your project’s exact specifications. Select your infill, color, and size, and receive a detailed quote from our expert team. Fast, precise, and fully custom.

Call PalmSHIELD to speak with a gate specialist
Request pricing or submit drawings using our contact form
