Covered Dumpster enclosures

Covered Dumpster Enclosures with Integrated Roof Protection

– Durable Dumpster Enclosures Built for Demanding Environments

PalmSHIELD Covered Dumpster Enclosures provide complete weather protection for commercial, industrial, municipal, healthcare, and multifamily properties. Each enclosure combines secure perimeter screening with an integrated roof system designed to shield dumpsters from rain, snow, wind-blown debris, and prolonged sun exposure.

  • Complete weather protection from rain, snow, and UV exposure
  • Helps prevent wind-blown trash and debris accumulation
  • Restricts access to authorized personnel
  • Available in single, double, and triple dumpster configurations
Covered Dumpster Styles
Architect Resources (BIM/CAD, Specs)

Covered Dumpster Enclosure Size Options

Whether your facility requires space for one dumpster or multiple waste containers, PalmSHIELD Covered Dumpster Enclosures are available in single, double, and triple bay configurations to support your operational needs while maintaining a clean, secure appearance.

Single Bay

Double Bay

Triple Bay

Covered Dumpster Enclosures Panel Styles

Louvered style options

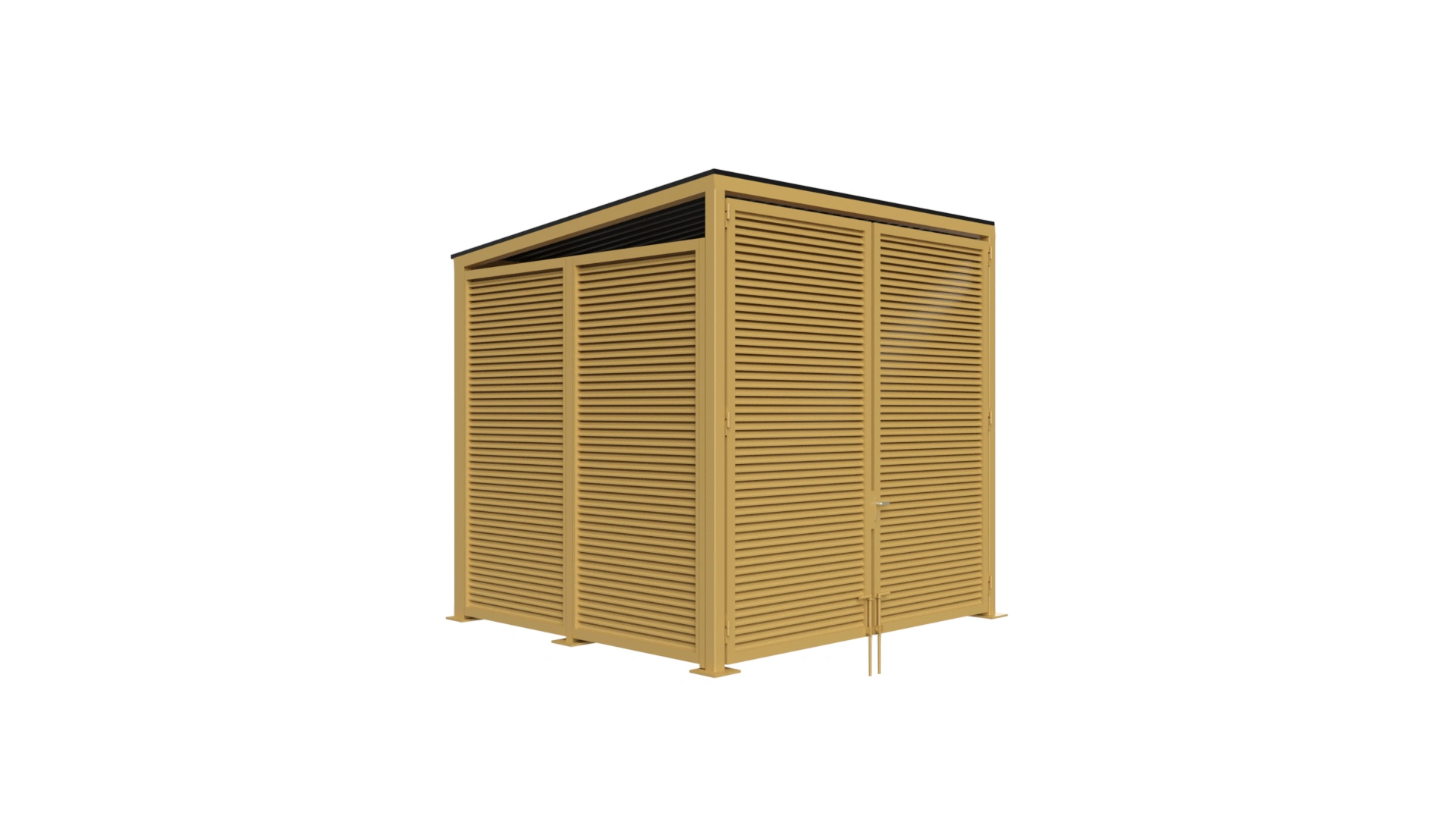

Horizontal Louver w/ Standard Cover

Horizontal Louver w/ Transom

KEY BENEFITS

Why Choose a Covered Dumpster Enclosure?

1

Enhanced Property Appearance

Creates a cleaner, more organized waste management area that improves overall site aesthetics and curb appeal.

2

Improved Sanitation and Cleanliness

Reduces exposure to the elements, helping maintain a more sanitary and controlled waste environment.

3

Durable Welded Construction

Engineered with heavy-duty materials and expert fabrication for long-term structural performance.

4

Multiple Architectural Infill Options

Choose from louver, aluminum, vinyl, or composite styles to match building design and performance needs.

Request a Quote Contact a Representative

architectural resources

Download CAD Files

Posts

  • Corner posts: custom extruded aluminum PS Elite profile w/ 3/4″ base plate
  • Tubular T-posts: 3″ × 3-11/16″ × 5/16″ aluminum w/ loose flange, 6063-T5
  • Hinge posts (standard): steel 4″ × 4″ T.S., capped
  • Hinge posts (center/heavy): steel 6″ × 6″ T.S., capped
  • Base plates: 3/4″ steel or aluminum, 6061-T6
  • Post hole spacing: 11″ o.c. typical, 4″ from ends

roof/cover system

  • Primary frame: 4″ × 4″ × 1/4″ aluminum square tube, 6063-T52
  • Beam: 2″ × 4″ × 1/4″ aluminum rectangle tube
  • Purlins: 2″ × 4″ × 1/8″ aluminum rect. tube, 6063-T52
  • Internal sleeve connections at frame joints
  • B-decking over purlin system (not shown in drawings for clarity)

Transom

  • AL 3″ × 4″ × 1/8″ aluminum channel midrail — divides louver zone from transom zone
  • Single & Double upper transom zone: wire mesh infill — wire diameter and spacing TBD by designer
  • Triple upper transom zone: 1/8″ laser cut aluminum sheet — pattern TBD by designer
  • Locinox FortyLock mortice lockset keyed both sides on all three configurations (PS-103862)

Frequently Asked Questions

A covered dumpster enclosure is a waste containment structure that includes perimeter screening and an overhead roof system. The roof protects dumpsters from weather while helping maintain a cleaner and more secure waste management area.

A roofed dumpster enclosure helps prevent rainwater accumulation, reduces wind-blown debris, protects waste containers from sun exposure, and improves overall site appearance and sanitation.

Yes. PalmSHIELD Covered Dumpster Enclosures are available in single, double, and triple dumpster configurations and can be customized to meet site-specific requirements.

The Solid Composite Plank, Tongue and Groove Aluminum Plank, and Tongue and Groove Vinyl Plank options provide the highest level of visual screening and privacy.

Let’s Connect

Request a Covered Dumpster Enclosure Quote

PalmSHIELD Covered Dumpster Enclosures combine security, weather protection, ventilation, and architectural design into a single integrated solution. Whether your project requires maximum airflow, complete privacy, or low-maintenance performance, our covered enclosure systems can be customized to meet your operational and aesthetic requirements.

Contact PalmSHIELD today to discuss your covered dumpster enclosure project and receive a custom design consultation.
