Railings
PalmSHIELD’s Railings

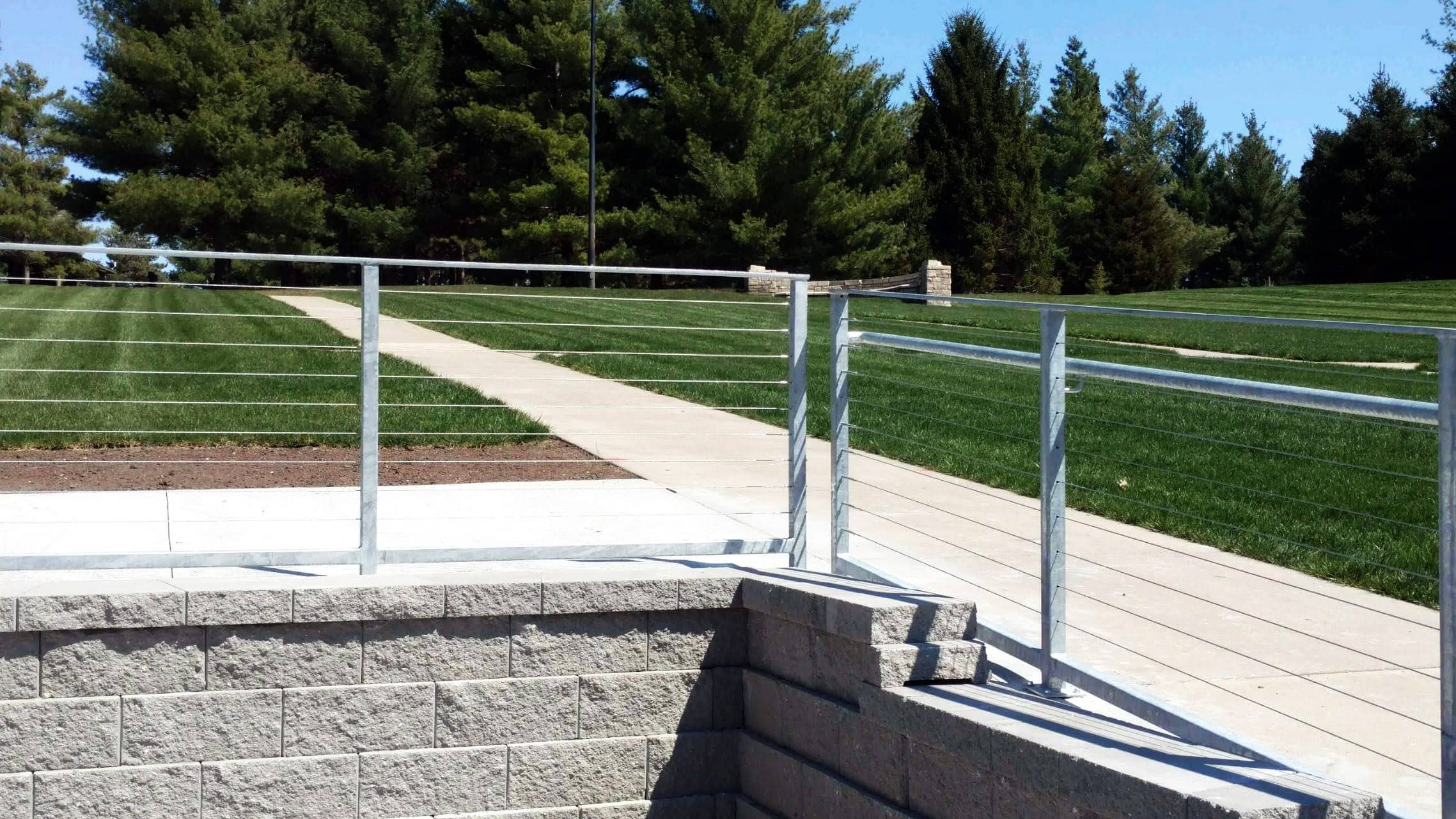

Cable railing is growing in popularity due to its slim and discreet appearance that leaves the eye to look beyond the railing. The challenge is cable railing must meet standard IBC / UBC codes, requiring practically no deflection. To meet this requirement the cables must be tensioned to some incredible levels, creating a considerable amount of pull on both ends of termination.

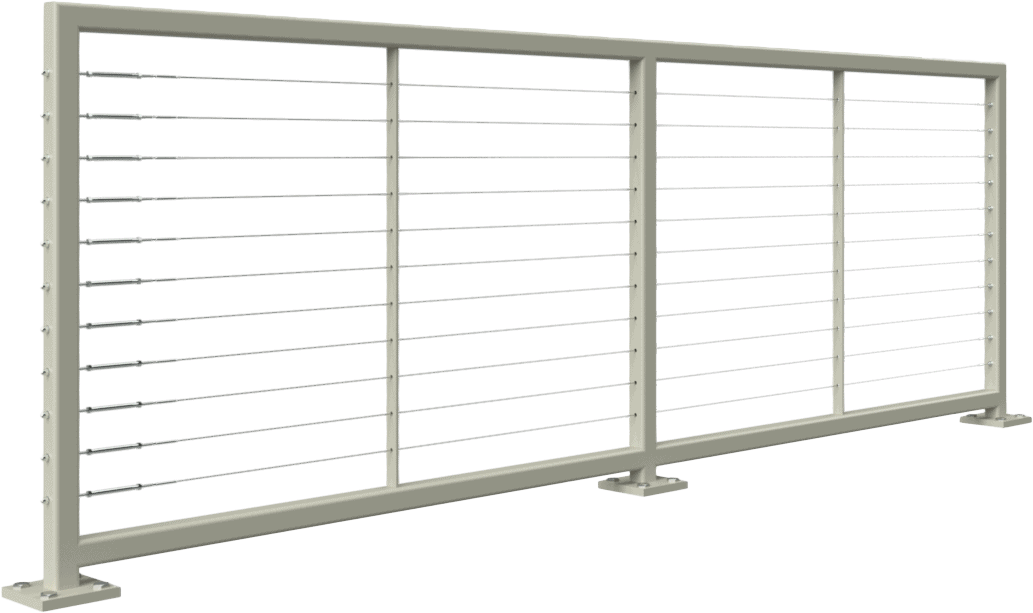

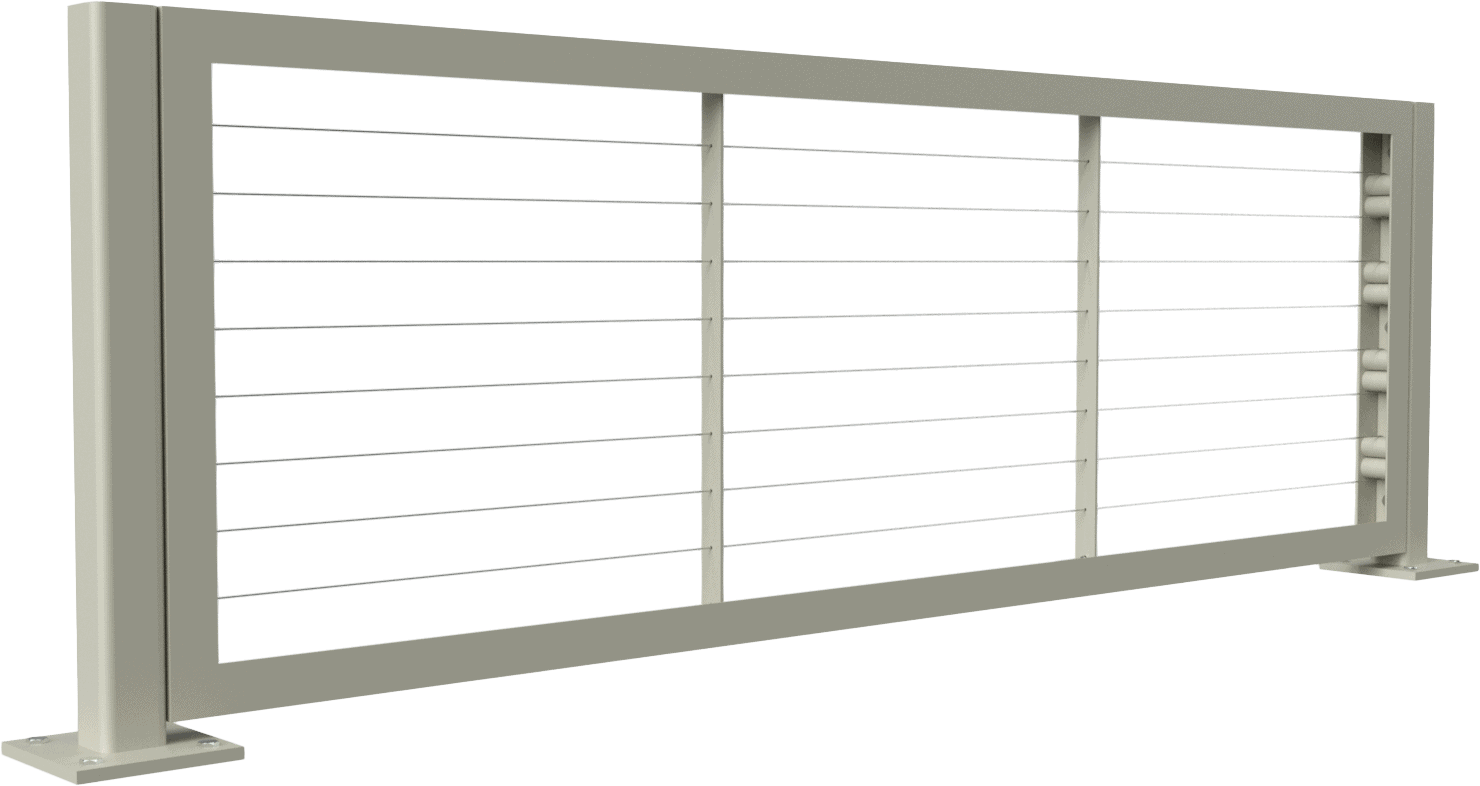

PalmSHIELD has been fabricating cable railing for almost twenty years. We know a thing or two about cable railing. Specifically, many installations fail over time to maintain proper tension. Imagine eleven cables, each tensioned to several hundreds of pounds of pull, pulling on one two inch square post screwed down to the top of a soft cedar deck board or stair plank. System failure! To prevent this mishap, PalmSHIELD uses their unique and proven fully framed panel design. With fully framed panels, the tension is transferred to the frame and not to your deck or stairs.

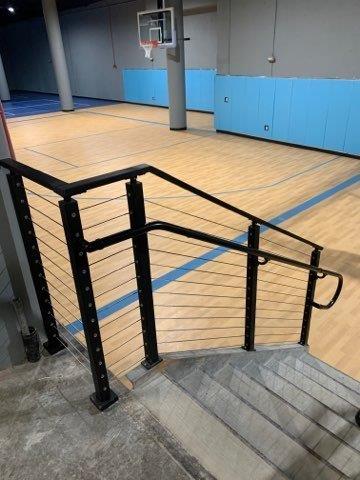

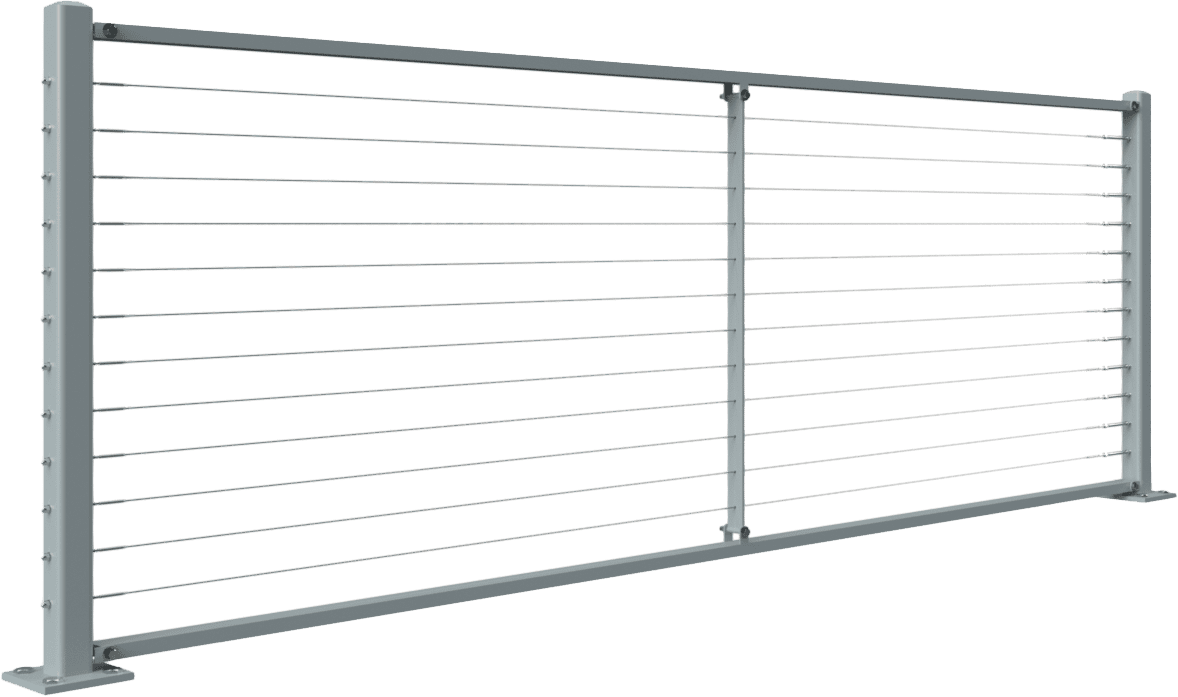

PalmSHIELD cable systems are designed to be accompanied with code compliant stair grab rails. All of our sections are custom fabricated. PalmSHIELD uses a rigid, thin cable stabilizer bar in the panels to support the long cable runs. At changes in slope, a stabilizer bar will support the cables without the use of additional posts. Fewer posts leaves more to be desired as you look beyond the cable rail system.
CAD Drawings and Specifications
The PalmSHIELD Customer Experience
When you want a complete solution to your louvered mechanical equipment screen, rooftop screen, architectural screening and ventilation needs without sweating the small stuff, choose PalmSHIELD–we make it easy. We walk you through the design. We got you covered. We stay with you from product engineering until the product is fully installed.
How do we make it so easy for you? We deploy six basic steps…
News
Should I Use CAD Drawings or BIM Drawings?
Design is a standard component of the architecture industry, and technology has evolved to make the corresponding processes simpler and more convenient. The last few decades featured architects and engineers utilizing CAD (Computer Aided Design) drawings to create the illustrations necessary for upcoming construction projects. But they also need drawings for fixtures attained from third-party […]
Read ArticleInstalling a Shade Structure for Back Patios
Customers look for two things in high-quality sun shade structures. One is, of course, design and functionality. Regardless of whether you’re sheltering train depot passengers from the summer heat, enhancing comfort in your backyard, or providing shade to a series of benches in a public park, you want a shade-providing fixture that gets the job […]
Read ArticleThe Benefits of BIM Drawings for Architectural Screens
It is with tremendous excitement that PalmSHIELD announces the latest resource available to customers seeking architectural and mechanical equipment screens. Our Resources page is loaded with specifications, CAD drawings, instructions, and technical data sheets. All to give customers a detailed picture of what they’ll get from hiring us to manufacture products for them. And now […]
Read ArticleHardware
SHIM STACKS
![](https://palmshieldlouvers.com/wp-content/uploads/2023/08/shim4-768x512-1.png)
PalmSHIELD has exactly what you need to provide that finished professional look. PalmSHIELD offers shims in two styles to be installed individually or in combination.
LOCINOX LATCH
![](https://palmshieldlouvers.com/wp-content/uploads/2020/01/locinox6-2-scaled.jpg)
PalmSHIELD incorporates the Locinox FortyLock mortise lock into all of our gates with lockable drop rods.
PANIC BARS
![](https://palmshieldlouvers.com/wp-content/uploads/2020/01/1241-Omega-Panic-Door-scaled.jpg)
PalmSHIELD utilizes DAC Industries, Inc. for their wide selection of panic bar options. You can find one that’s perfect for your project with their reliable and versatile product lines.
DROP ROD
![](https://palmshieldlouvers.com/wp-content/uploads/2020/03/palmshield-drop-rod.jpg)
PalmSHIELD can fit any gate with the perfect sized drop rod to secure it in place.
GORILLA HINGE
![](https://palmshieldlouvers.com/wp-content/uploads/2020/01/fairview-2-1-scaled.jpg)
PalmSHIELD has designed its own line of industrial hinges strong and flexible enough to pair with any gate.
MOUNTING SYSTEM
![](https://palmshieldlouvers.com/wp-content/uploads/2020/02/AdobeStock_215587589-scaled.jpeg)
PalmSHIELD’s Rooftop mounting systems are based on allowing the easily mount any of our full framed screening systems to their existing posts or rooftops
GATE CLOSURE
![](https://palmshieldlouvers.com/wp-content/uploads/2020/02/27_1024x768-SAMSON-2GATECLOSERINDUSTRIAL.jpg)
PalmSHIELD has once again chosen Locinox for a variety of proven top-of-the-range gate closers for large or small gates.
